HVA28 & HVA28TD

Output voltage 29 kV_peak, 21 kV_rms
Load 0.5 μF @ 0.1 Hz @ 20 kV_rms
Weight 14 kg / 31 lbs

HVA34-1 & HVA34TD-1

Output voltage 34 kV_peak, 24 kV_rms
Load 1.5 μF @ 0.1 Hz @ 24 kV_rms
Weight 39 kg / 86 lbs

HVA45 & HVA45TD

Output voltage 45 kV_peak, 32.3 kV_rms
Load 0.9 μF @ 0.1 Hz @ 32 kV_rms
Weight 39 kg / 86 lbs

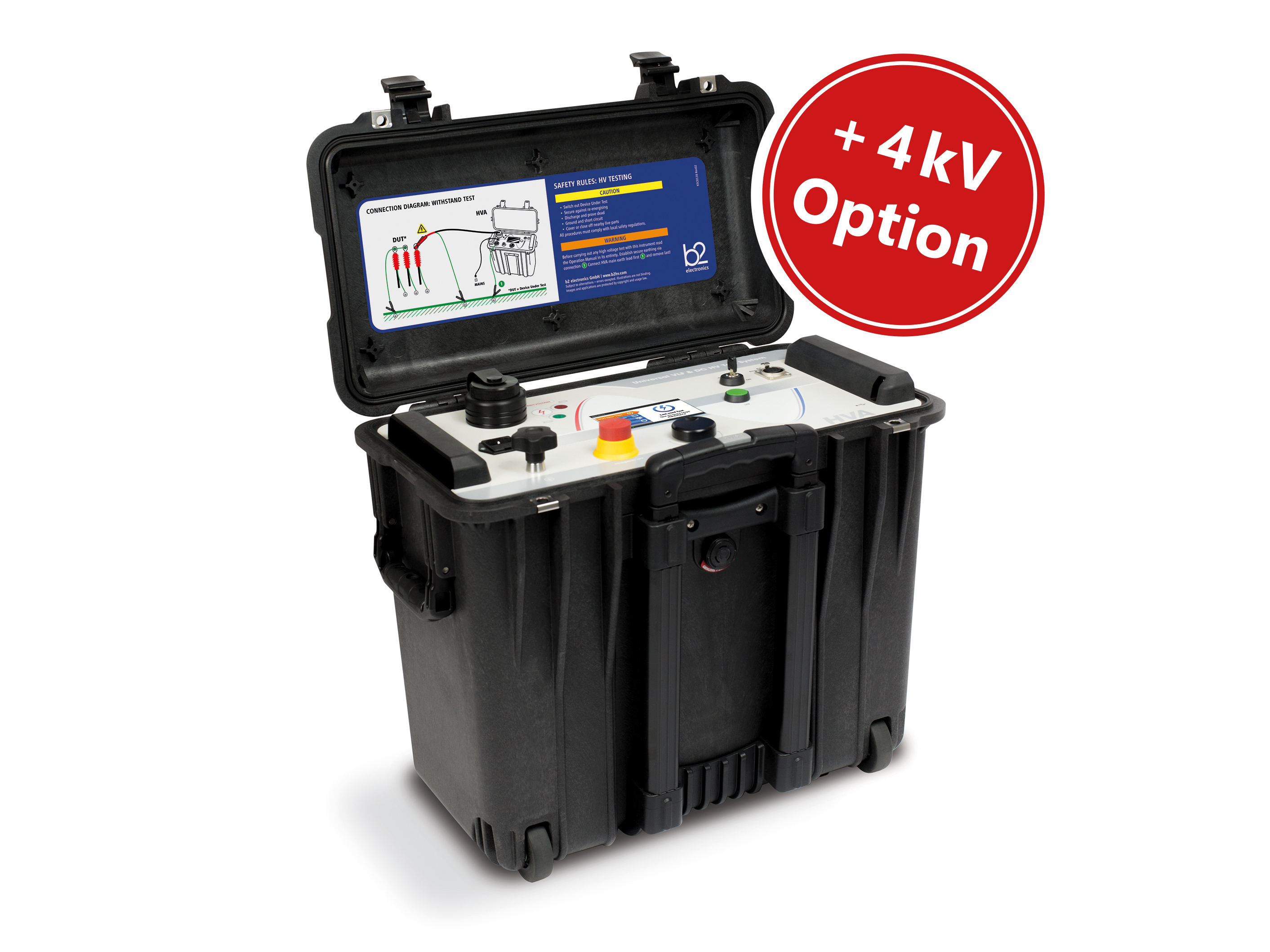

HVA45 & HVA45TD +4 kV

Output voltage 49 kV_peak, 34.6 kV_rms
Load 0.9 μF @ 0.1 Hz @ 32 kV_rms
Weight 39 kg / 86 lbs

HVA68TD

Output voltage 68 kV_peak, 48 kV_rms
Load 2 μF @ 0.1 Hz @ 44 kV_rms

HVA30-7

Output voltage 34 kV_peak, 24 kV_rms
Load 6.0 μF @ 0.1 Hz @ 24 kV_rms
Weight 57 kg / 125.6 lbs

HVA34

Output voltage 34 kV_peak, 24 kV_rms
Load 0.8 μF @ 0.1 Hz @ 24 kV_rms
Weight 20 kg / 44 lbs

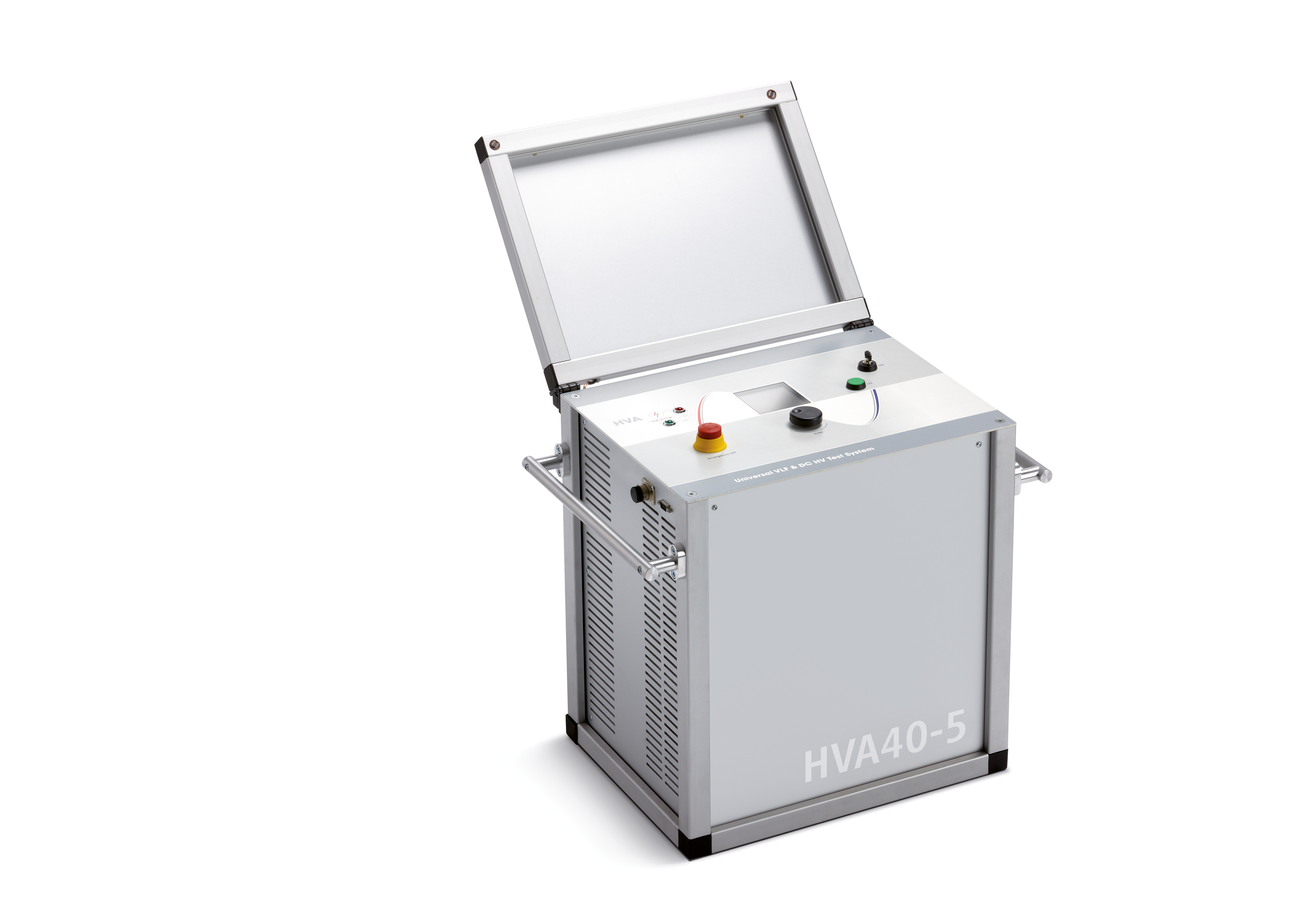

HVA40-5

Output voltage 45 kV_peak, 32 kV_rms
Load 5.0 μF @ 0.1 Hz @ 27 kV_rms
Weight 57 kg / 125.6 lbs

HVA54-3

Output voltage 54 kV_peak, 38 kV_rms
Load 3.0 μF @ 0.1 Hz @ 36 kV_rms
Weight 57 kg / 125.6 lbs

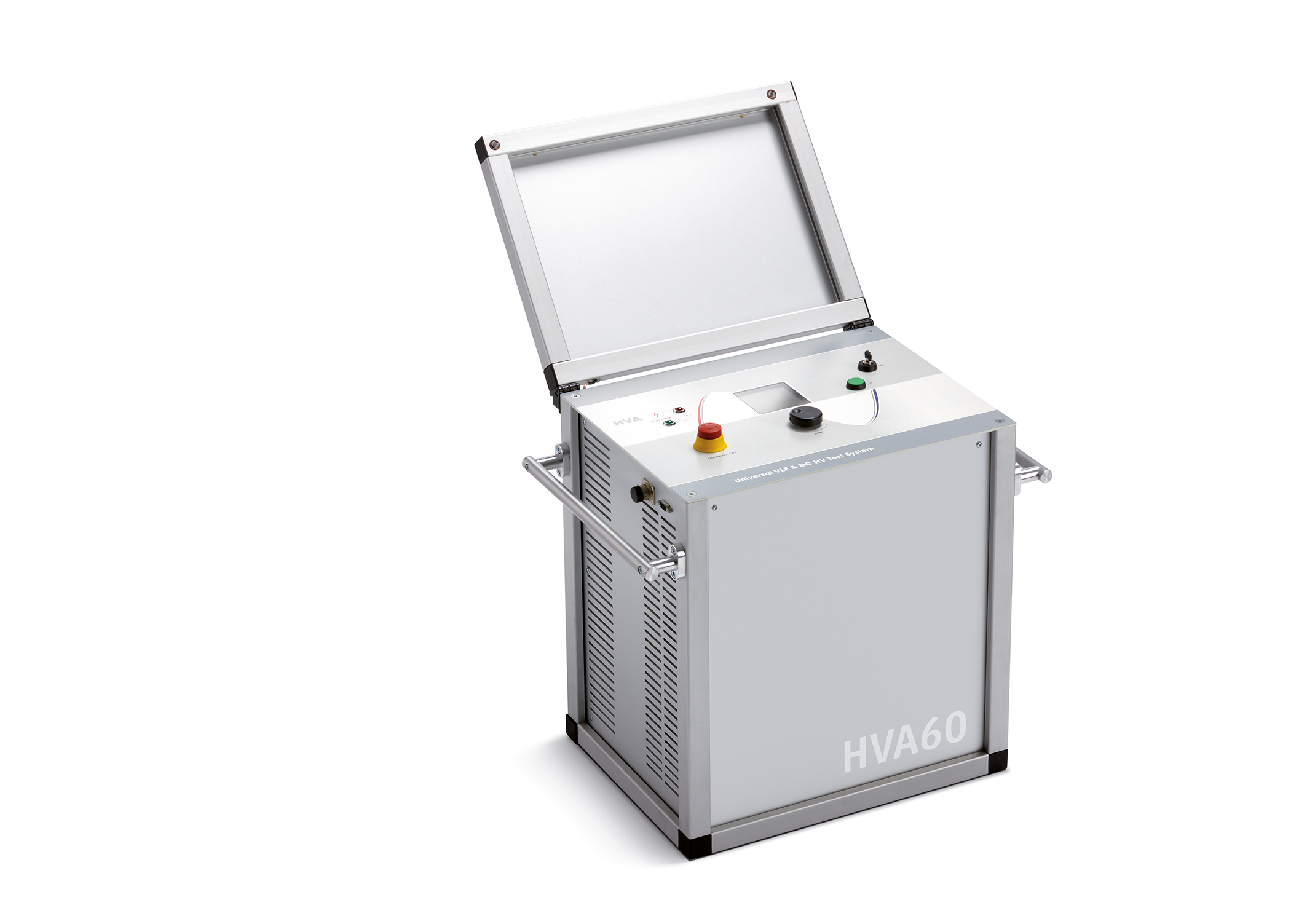

HVA60

Output voltage 62 kV_peak, 44 kV_rms
Load 1.0 μF @ 0.1 Hz @ 44 kV_rms
Weight 57 kg / 125.6 lbs

HVA68-2

Output voltage 68 kV_peak, 48 kV_rms
Load 2.0 μF @ 0.1 Hz @ 44 kV_rms
Weight 57 kg / 125.6 lbs

HVA90

Output voltage 90 kV_peak, 64 kV_rms
Load 1.0 µF @ 0.1 Hz @ 64 kV_rms
Weight 127 kg / 280 lbs

HVA94

Output voltage 94 kV_peak, 66 kV_rms
Load 0.9 µF @ 0.1 Hz @ 66 kV_rms
Weight 128 kg / 282.2 lbs

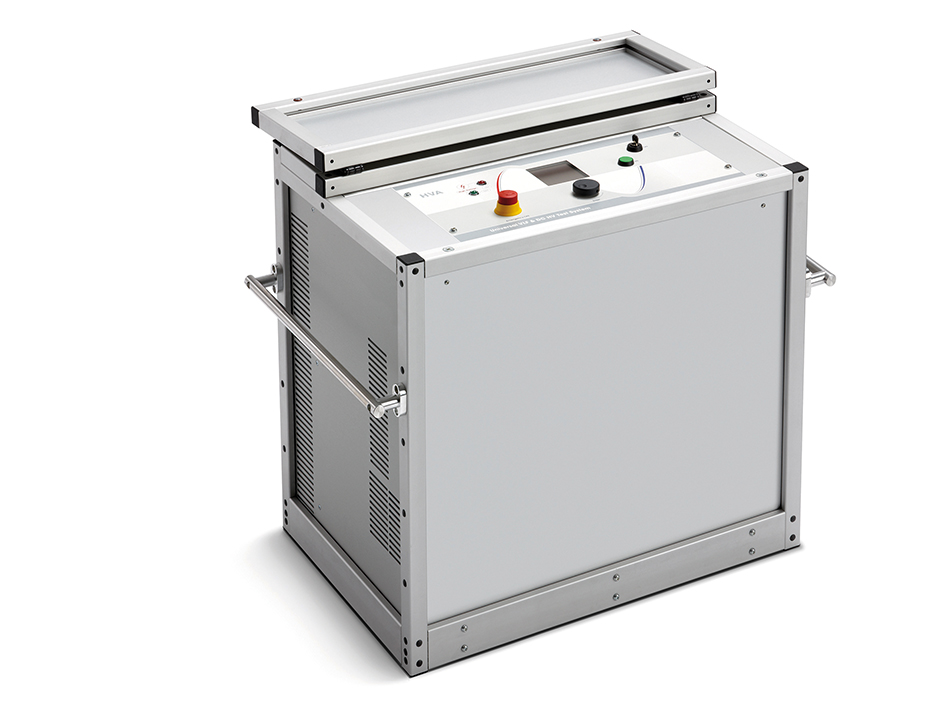

HVA120

Output voltage 120 kV_peak, 85 kV_rms
Load 0.5 µF @ 0.1 Hz @ 85 kV_rms
Weight 198 kg / 436.5 lbs

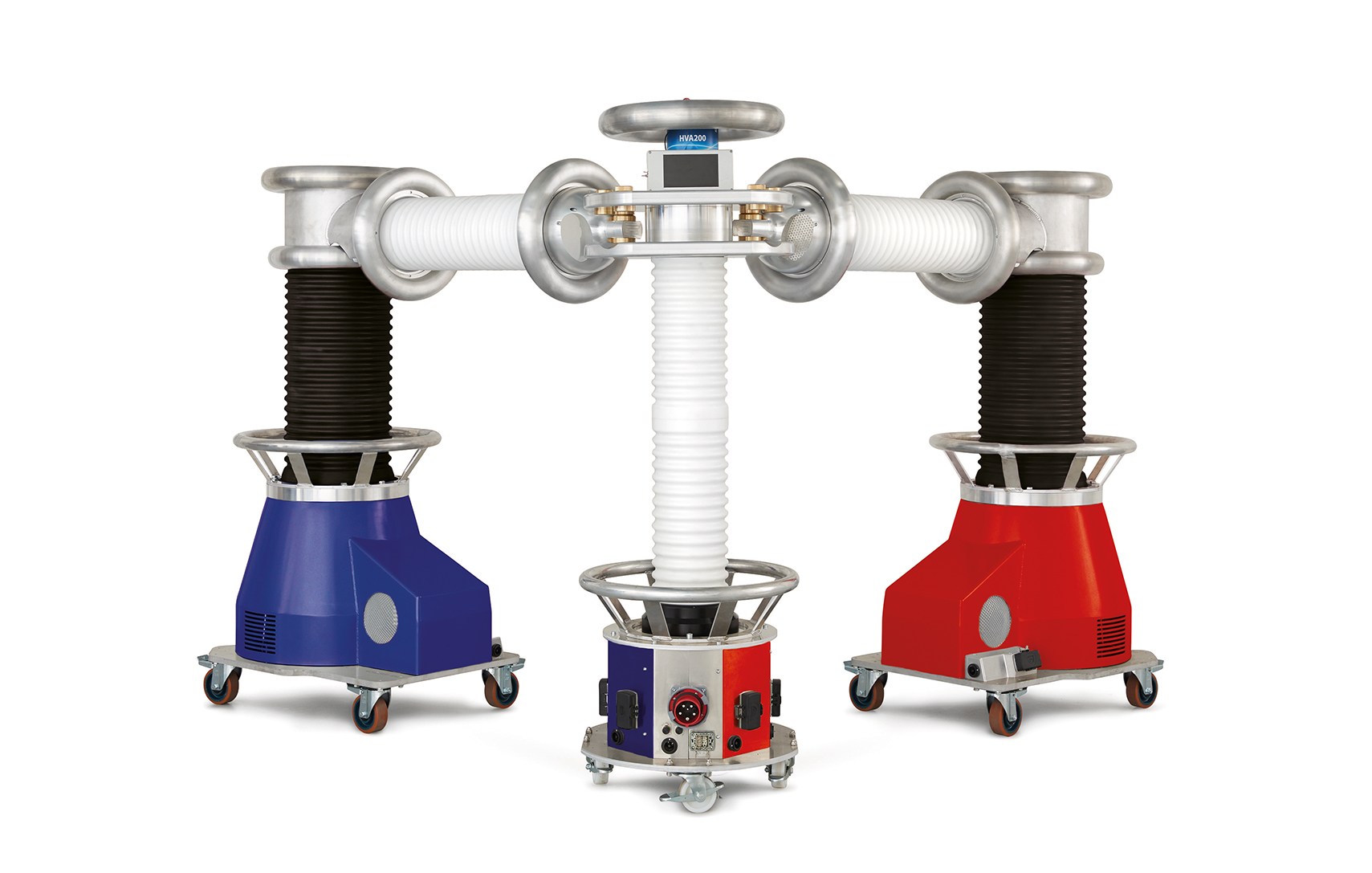

HVA200

Output voltage 200 kV_peak, 141 kV_rms
Load 0.6 μF @ 0.1 Hz @ 141 kV_rms
Weight ca. 950 kg / 2.094 lbs

TD30

Operating voltage (sine wave)
34 kV_peak, 24 kV_rms
Tan Delta (resolution/accuracy)
1 x 10^-5 / ± 1 x 10^-4

TD60-MC

Operating voltage (sine wave)
62 kV_peak, 44 kV_rms
Tan Delta (resolution/accuracy)
1 x 10^-5 / ± 1 x 10^-4

TD90-MC

Operating voltage (sine wave)
90 kV_peak, 64 kV_rms
Tan Delta (resolution/accuracy)
1 x 10^-5 / ± 1 x 10^-4

TD120-MC

Operating voltage (sine wave)
120 kV_peak, 85 kV_rms
Tan Delta (resolution/accuracy)
1 x 10^-5 / ± 1 x 10^-4

PD30-E

Operating voltage (sine wave)
34 kV_peak, 24 kV_rms
PD localization (resolution/accuracy)
0.1 m / 1 %

PD60-2 & PDTD60-2

Operating voltage (sine wave)
62 kV_peak, 44 kV_rms
PD localization (resolution/accuracy)
0.1 m / 1 %

PDTD68

Operating voltage (sine wave)
68 kV_peak, 48 kV_rms
PD localization (resolution/accuracy)
0.1 m / 1 %

PD90-2 & PDTD90-2

Operating voltage (sine wave)
90 kV_peak, 64 kV_rms
PD localization (resolution/accuracy)
0.1 m / 1 %

PD120-2 & PDTD120-2

Operating voltage (sine wave)
120 kV_peak, 85 kV_rms
PD localization (resolution/accuracy)
0.1 m / 1 %

PDTD200-2

Operating voltage (sine wave)
200 kV_peak, 141 kV_rms
PD localization (resolution/accuracy)
0.1 m / 1 %

BA75

max. Output voltage 75 kV_rms
Weight 22 kg (incl. battery)

BA80

max. Output voltage 80 kV_rms
Weight 22 kg (incl. battery)

BA100

max. Output voltage 100 kV_rms
Weight 32 kg (incl. battery)
